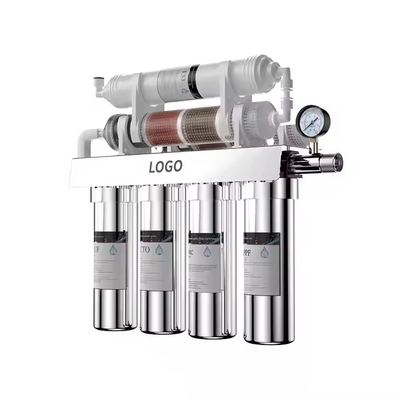

Stainless Steel 9 stages Large Flow Household Ultrafiltration Water Filter Drinking Tap Water Purifier

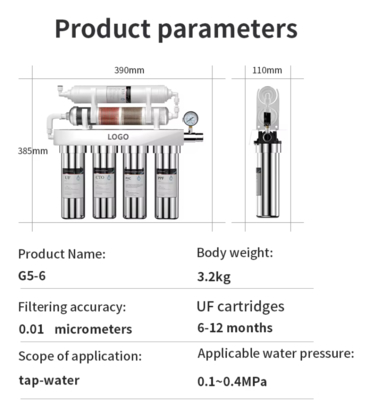

1. 9 Stages Stainless Steel Water Purifier Technical Parameters.
| Item | Technical Parameter |
| Size | 46.5*16*41.5cm,4kg |
| Application | Household |
| Type | Whole house filter |
| Warranty | More than 2 years |
| Micron Rating | 0.01 micron by filtration |
| Filter Life | 6-12 months |
| Applicable water quality | Tap water |
| Applicable water Pressure | 0.1-0.4Mpa |
| Purified water flow rate | 900L |
2. Factory Profile.
Shenzhen Hanlan Environmental Protection Technology Co., Ltd, was established in 2010and was recognized as a National High-tech Enterprise of China in 2024. The company focuseson the water purification field, possessing global R&D innovation, intelligent manufacturing,supply chain integration, and software and hardware service capabilities. We hold over 100national patents and has an annual production capacity of 5 million units, providing OEM and ODM solutions for over 100 brands worldwide.![]()
3. 9 Stages Stainless Steel Water Purifier Features
*Core Structure and Material Characteristics

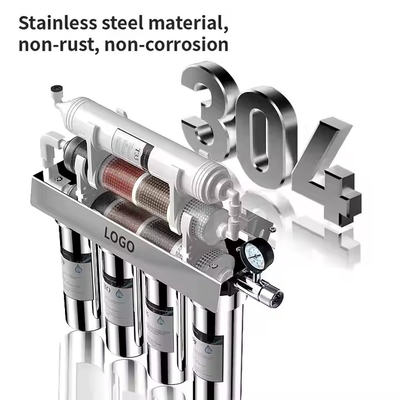

1.The additional advantages of the stainless steel body
*Durability: Stainless steel is corrosion-resistant and heat-resistant, making it suitable for long-term contact with water environments.
*Hygiene: The surface is smooth and easy to clean, which inhibits bacterial growth.
*Environmental friendliness: Recyclable materials, meeting the requirements of sustainable development
![]()

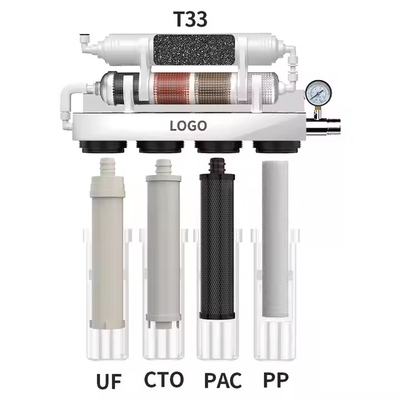

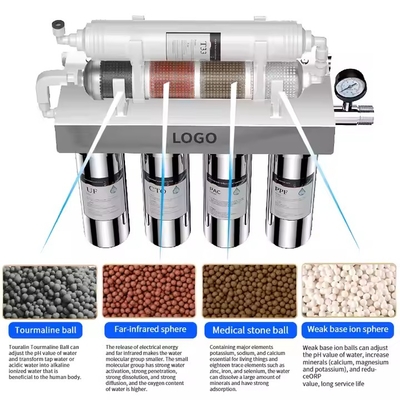

2. Modular 9-stage filtration system

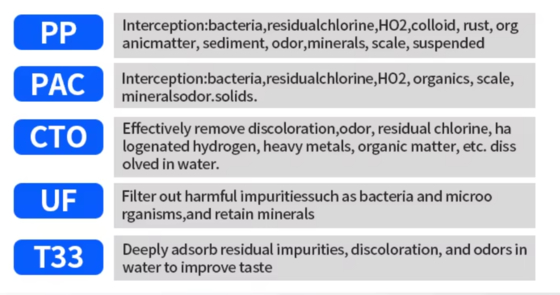

| Filtering stage | Filter element type | Function |
| 1 |
PP |
Interception: Bacteria, Residual Chlorine, HO2, Colloid, Rust, Organic Matter, Sediment, Odor, Minerals, Scale and Suspended solid. Advantages: Protect the subsequent filter elements from being contaminated by large particles and extend the overall system's lifespan. |
| 2 |
PAC |
Interception: Bacteria, residual Chlorine, HO2, Organics, Scale, Mineral Odor and Solid. Advantages: It has a stronger adsorption capacity than granular activated carbon (GAC). Due to its larger specific surface area, it is often used in the pretreatment stage to enhance the subsequent filtration effect |
| 3 |
CTO |
Effectively remove Stains, Odor, Residual Chlorine, Hydrogen Sulfide and Ammonia as Heavy Metal and Organic Matter can dissolve in water. Advantages: Combining the dual functions of adsorption and filtration, it reduces chemical residues in water |
| 4 |
UF |
Function: Remove bacteria, viruses, colloids and suspended solids through hollow fiber membranes with a pore size of 0.01 microns, while retaining minerals. 3. Does not produce wastewater, and is suitable for the need to retain minerals.
|
| 5 |

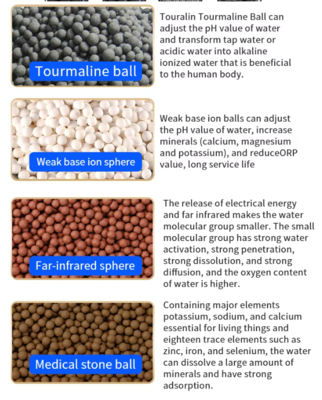

Tourmaline Ball |
Function: Release negative ions and far-infrared rays (with wavelengths ranging from 4 to 12μm), activate water molecules, decompose chlorine gas, and adjust pH to weakly alkaline. Advantages: Inhibit bacterial growth and improve the taste of water. |
| 6 |
Weak Base Ion Sphere
|
Function: By slowly releasing alkaline ions through natural minerals (such as tourmaline and tourmaline), it neutralizes acidic substances in water to form weakly alkaline water (pH 7.5-9.5). Advantages: Suitable for long-term consumption and may promote the acid-base balance in the human body |
| 7 |
Far Infrared Sphere
|
Function: Emits far-infrared rays (8-15μm), breaks down water molecule clusters, and enhances the permeability and solubility of water. |
| 8 | Medical Stone Ball |
Function: Release over 40 trace elements (such as potassium, sodium, and zinc), regulate mineral balance, and purify water quality. |
| 9 |
T33 |
Deeply absorb residual impurities and odor to improve taste. |
![]()
![]()
* Core advantages and user value.
![]()
*Suggested applicable scenarios:
FAQ
How could I get a sample?
Sample time?
Whether you could make our brand on your products?
Whether you could make your products by our color?
How to guarantee the quality of your products?
