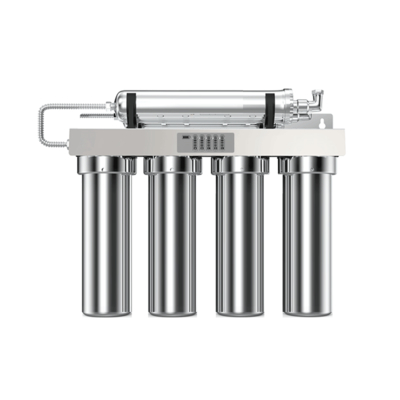

6 stages Under Sink Water Filter Household Filtering Water Purifier System

1. UV Ultrafiltration Water Purifier Parameters.

2. Factory Profile.

Founded in December 2010, is a high quality, high innovation, efficient high-techenterprise integrating research and development.

Production and sales,focusing on water purification equipment for 15years, for manyinternational brands agent processing services, once won the market praise.

Provide professionalism OEM and ODM services.

3. Ultrafiltration Water Purifier Features and Benefits​.

​​6-Stage Filtration Process​

​

​​1. Stage 1: 316 Stainless Steel (SS) Filter Screen (40 Micron)​​

• ​​Material​​: 316L stainless steel (superior corrosion resistance, especially for saline/well water).
• ​​Function​​: Removes large sediment, sand, rust, and debris.
• ​​Key Benefit​​: ​​Self-cleaning & reusable​​ (backwashable design reduces maintenance).

​​2. Stage 2: PP Cotton Filter (5–20 Micron)​​

• ​​Material​​: Polypropylene (depth filtration).
• ​​Function​​: Captures finer particles, protecting downstream filters.
• ​​Key Benefit​​: ​​Low-cost replacement​​ (every 3–6 months).

​​3. Stage 3: Granular Activated Carbon (UDF)​​

• ​​Material​​: Granular Carbon.
• ​​Function​​: Adsorbs chlorine, pesticides, VOCs, and organic compounds.
• ​​Key Benefit​​: Adsorption of Most Impurities Heterochromatic Odor

​​4. Stage 4: Taste Activated Carbon (CTO)​​

• ​​Material​​: Coconut shell-based carbon.
• ​​Function​​: Secondary Adsorption of Chlorine, Volatile Organic Compounds I and Improved Taste.
• ​​Key Benefit​​: Adsorption Heterochromatic Odor and Improved Taste.

​​5. Stage 5: PVDF Ultrafiltration (UF) Membrane (0.01–0.1 Micron)​​

• ​​Material​​: Polyvinylidene fluoride (PVDF) — high chemical/thermal stability.
• ​​Function​​: Removes ​​bacteria, viruses, microplastics, and colloids​​.
• ​​Key Benefit​​: ​​No chemicals needed​​, retains beneficial minerals.

6. Stage 6: Post active carbon​

• ​​Material​​: Sintered Activated Carbon.
• ​​Function​​: Remove Peculiar Smell in Water and Supplement a Small Number of Mineral Elements..
• ​​Key Benefit​​: ​​Final safety barrier​​ :Second Improvement of Taste and Odor Removal.

Applications​​

• ​​Well Water​​: Perfect for high-sediment/bacterial contamination.
• ​​Municipal Tap Water​​: Extra protection against pipe corrosion/byproducts.
• ​​Outdoor Use​​: Suitable for RVs, farms, and remote cabins (within temp range).

Benefits​​

​​Comprehensive Protection​​

• Removes ​​particulates, chemicals, heavy metals, and microbes​​ in one system.
  Durable & Long-Lasting​​
• ​​316 SS screen​​ and ​​PVDF membrane​​ outperform standard materials in harsh conditions.
  Low Operating Cost​​
• No consumables (except PP/UDF/CTO/T33 filters);
  Eco-Friendly​​
• Preserves natural minerals; no chemical additives.
  ​Easy Maintenance​​
• Backwashable 316 SS screen; replaceable cartridges (PP every 6 months, UDF/CTO/T33 every 12 months,316 SS screen/PVDF More than 3 Years).

Applications​​

• ​​Municipal Tap Water​​: Extra protection against pipe corrosion/byproducts.
• ​​Outdoor Use​​: Suitable for RVs, farms, and remote cabins (within temp range).
• ​​Installation : It Can Be Installed under the Table Top, Kitchen Sink Or Wall.

FAQ

Q: Are you a factory or a trading company?

A: We are a water purifier manufacturing factory with over 500 employees. We offer customized solutions including coarse filtration and fine filtration.

Q: Can the product be customized with a logo and packaging?

A: OEM/ODM services are supported, including logo design and packaging customization. The minimum order quantity is 1 piece.

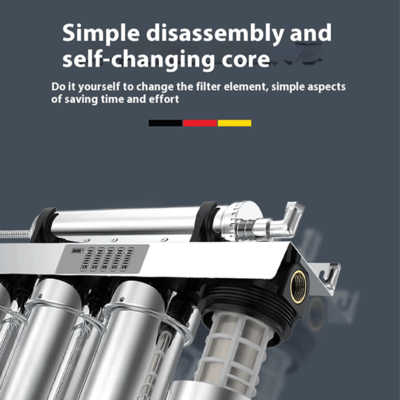

Q: How is the filter element replaced? Does it require professional personnel?

A: No professional tools are needed. It can be replaced by simply unscrewing with one hand. The filter element can be cleaned and reused.

Q: Is it suitable for rural well water?

A: Yes, it can filter impurities such as sand and rust in well water. It is recommended to use it in combination with a pre-treatment device.

Q: How could I get a sample?

A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

​Q: Sample time?

A: Existing items: Within xxx days.

Q: Whether you could make our brand on your products?

A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
