10 Inch UV Ultrafiltration Water Purifier Tap Water 5 Stage Water Filters System

1. UV Ultrafiltration Water Purifier Parameters.

2. Factory Profile.

Shenzhen Hanlan Environmental Protection Technology Co., Ltd, was established in 2010and was recognized as a National High-tech Enterprise of China in 2024. The company focuseson the water purification field, possessing global R&D innovation, intelligent manufacturing,supply chain integration, and software and hardware service capabilities. We hold over 100national patents and has an annual production capacity of 5 million units, providing OEM and ODM solutions for over 100 brands worldwide.

3.  UV Ultrafiltration Water Purifier Features and Benefits​.

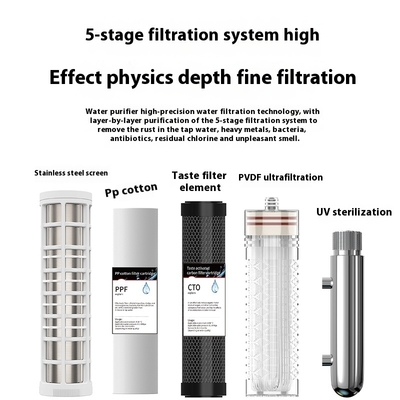

​​5-Stage Filtration Process​​

​​1. Stage 1: 316 Stainless Steel (SS) Filter Screen (40–100 Micron)​​

• ​​Material​​: 316L stainless steel (superior corrosion resistance, especially for saline/well water).
• ​​Function​​: Removes large sediment, sand, rust, and debris.
• ​​Key Benefit​​: ​​Self-cleaning & reusable​​ (backwashable design reduces maintenance).

​​2. Stage 2: PP Cotton Filter (5–20 Micron)​​

• ​​Material​​: Polypropylene (depth filtration).
• ​​Function​​: Captures finer particles, protecting downstream filters.
• ​​Key Benefit​​: ​​Low-cost replacement​​ (every 3–6 months).

​​3. Stage 3: Granular Activated Carbon (CTO)​​

• ​​Material​​: Coconut shell-based carbon.
• ​​Function​​: Adsorbs chlorine, pesticides, VOCs, and organic compounds.
• ​​Key Benefit​​: Improves ​​taste/odor​​ and extends UV tube lifespan.

​​4. Stage 4: PVDF Ultrafiltration (UF) Membrane (0.01–0.1 Micron)​​

• ​​Material​​: Polyvinylidene fluoride (PVDF) — high chemical/thermal stability.
• ​​Function​​: Removes ​​bacteria, viruses, microplastics, and colloids​​.
• ​​Key Benefit​​: ​​No chemicals needed​​, retains beneficial minerals.

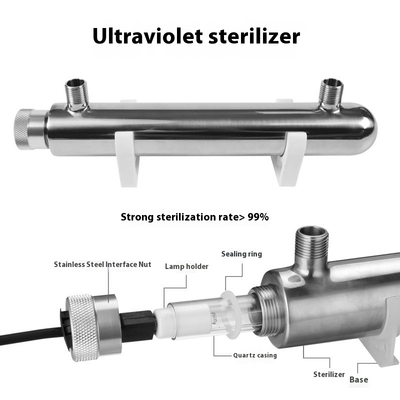

​​5. Stage 5: UV Sterilization Tube​​

• ​​Material​​: High-purity quartz sleeve + 254nm UV-C lamp.
• ​​Function​​: Destroys 99.99% of remaining pathogens (e.g., E. coli, cysts).
• ​​Key Benefit​​: ​​Final safety barrier​​ with instant disinfection.

Key Features​​

✔ ​​All-Metal Housing​​: 316 SS components resist rust and corrosion.
✔ ​​Temperature Range​​: Stable performance in ​​5–38°C​​ (avoid freezing/boiling).
✔ ​​High Flow Rate​​: Delivers 500-900L/h with minimal pressure drop.
✔ ​​Zero Wastewater​​: Unlike RO systems, no water wastage.

Benefits​​

 ​​Comprehensive Protection​​

• Removes ​​particulates, chemicals, heavy metals, and microbes​​ in one system.
  Durable & Long-Lasting​​
• ​​316 SS screen​​ and ​​PVDF membrane​​ outperform standard materials in harsh conditions.
  Low Operating Cost​​
• No consumables (except PP/CTO filters);
  Eco-Friendly​​
• Preserves natural minerals; no chemical additives.
  ​Easy Maintenance​​
• Backwashable 316 SS screen; replaceable cartridges (PP/CTO every 6 months, UF every 2 years).

Applications​​

• ​​Well Water​​: Perfect for high-sediment/bacterial contamination.
• ​​Municipal Tap Water​​: Extra protection against pipe corrosion/byproducts.
• Kitchen Use.
